Tomei ARMS BX8280 Ball Bearing Bolt-On Turbo for Evo X (TB403A-MT02A)
The Tomei ball bearing turbo for the Evo X features a CNC billet compressor wheel made from aerospace-grade materials, with thinner blades for improved airflow and turbo spool, supporting approximately 450HP. The multi-rate billet actuator boasts a large capacity and reinforced forged billet construction, including six springs for precise boost adjustments. The swivel-type nipple offers greater flexibility in hose routing, and up to three springs can be combined to achieve the perfect setup.
Vehicle Fitment:
2008-2015 Mitsubishi Lancer Evolution X
(4B11/ CZ4A)
| Compressor Wheel: | Turbine Wheel: | ||
| ⒶIND(mm) | 61.4 | ⒸEXD(mm) | 58.8 |
| ⒷEXD(mm) | 82 | ⒹIND(mm) | 67.0 |
| Trim | 56 | Trim | 77 |
| Blades | 6/6 | Blades | 9 |
| Material | A2618 | Material | K418 |
| Production | CNC Billet | Production | Cast |
| Compressor Housing: | Turbine Housing: | ||
| IND(mm) | 62.4 | IND(mm) | 4B11 |
| EXD(mm) | 40.2 | IND(mm) | 4B11 |
| A/R | 0.51 | A/R | 0.89 |
More Info:

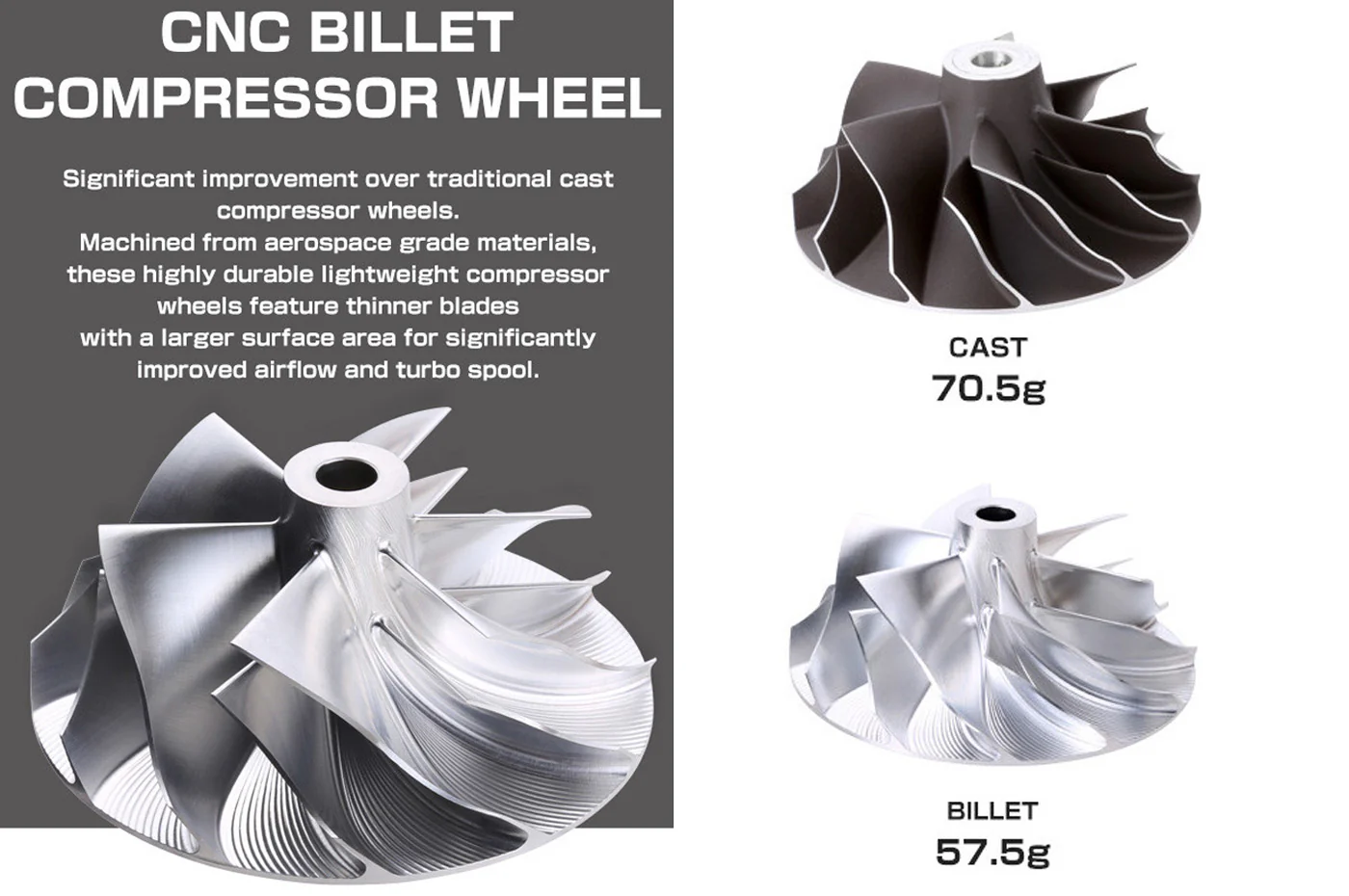

CNC BILLET COMPRESSOR WHEEL
A significant improvement over traditional cast compressor wheels, these lightweight and highly durable compressor wheels are machined from aerospace-grade materials. They feature thinner blades with a larger surface area for greatly enhanced airflow and turbo spool.

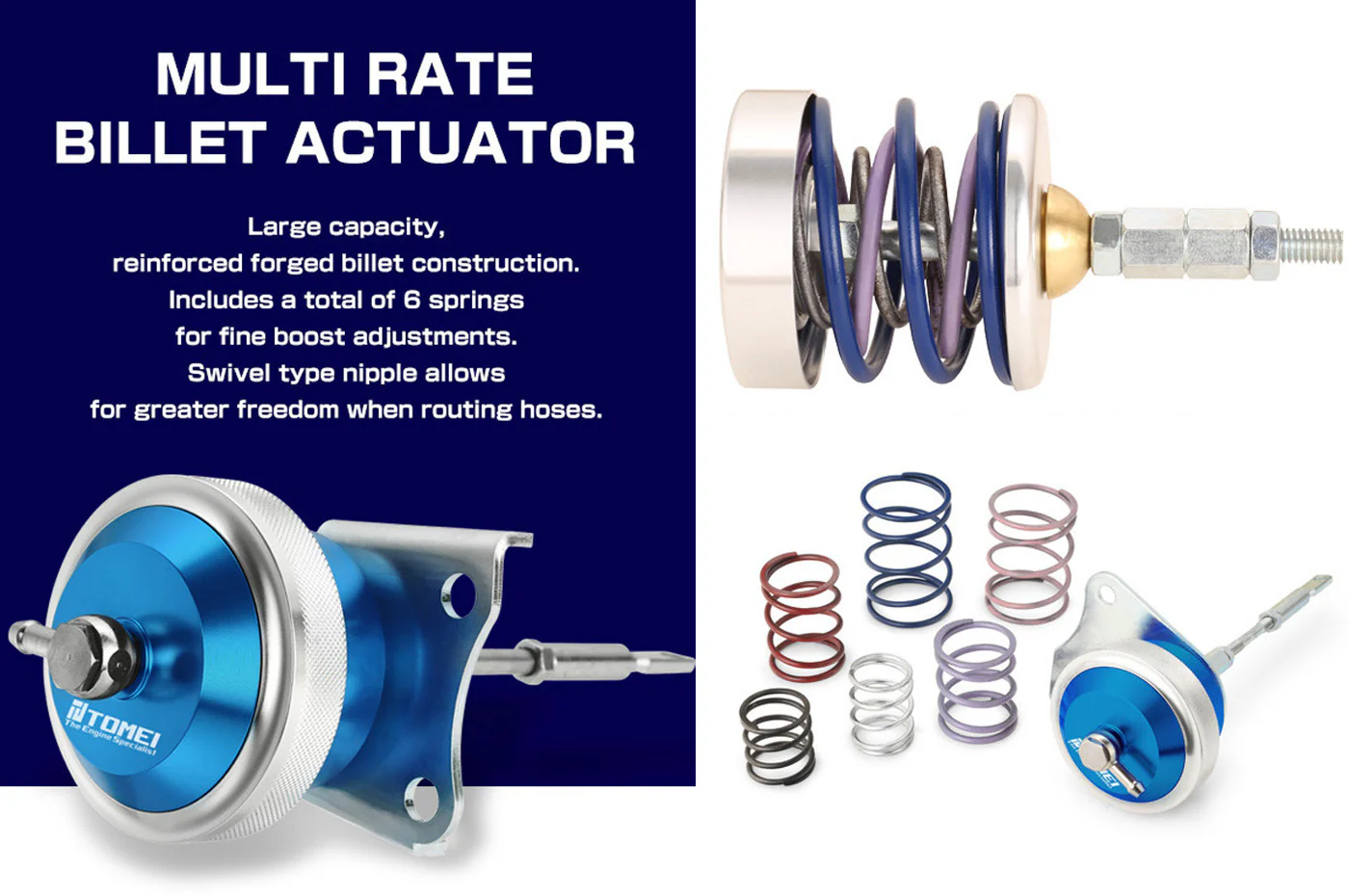

MULTI RATE BILLET ACTUATOR
The large-capacity, reinforced forged billet construction includes six springs for precise boost adjustments. The swivel-type nipple offers greater flexibility when routing hoses. You can combine up to three springs to achieve the perfect setup. (Six springs included)
More Images
Tomei ARMS BX8280 Ball Bearing Bolt-On Turbo for Evo X (TB403A-MT02A)
The Tomei ball bearing turbo for the Evo X features a CNC billet compressor wheel made from aerospace-grade materials, with thinner blades for improved airflow and turbo spool, supporting approximately 450HP. The multi-rate billet actuator boasts a large capacity and reinforced forged billet construction, including six springs for precise boost adjustments. The swivel-type nipple offers greater flexibility in hose routing, and up to three springs can be combined to achieve the perfect setup.
Vehicle Fitment:
2008-2015 Mitsubishi Lancer Evolution X
(4B11/ CZ4A)
| Compressor Wheel: | Turbine Wheel: | ||
| ⒶIND(mm) | 61.4 | ⒸEXD(mm) | 58.8 |
| ⒷEXD(mm) | 82 | ⒹIND(mm) | 67.0 |
| Trim | 56 | Trim | 77 |
| Blades | 6/6 | Blades | 9 |
| Material | A2618 | Material | K418 |
| Production | CNC Billet | Production | Cast |
| Compressor Housing: | Turbine Housing: | ||
| IND(mm) | 62.4 | IND(mm) | 4B11 |
| EXD(mm) | 40.2 | IND(mm) | 4B11 |
| A/R | 0.51 | A/R | 0.89 |
More Info:
CNC BILLET COMPRESSOR WHEEL
A significant improvement over traditional cast compressor wheels, these lightweight and highly durable compressor wheels are machined from aerospace-grade materials. They feature thinner blades with a larger surface area for greatly enhanced airflow and turbo spool.
MULTI RATE BILLET ACTUATOR
The large-capacity, reinforced forged billet construction includes six springs for precise boost adjustments. The swivel-type nipple offers greater flexibility when routing hoses. You can combine up to three springs to achieve the perfect setup. (Six springs included)
