STM Evo 7/8/9 Forward-Facing 6870 V-Band Turbo Kit

If you're looking for the baddest turbo kit out there, this is it! The new STM 6870 V-Band Forward-Facing Turbo Kit is compatible with all Evo 7/8/9 models and places the turbo right in the front of the bumper for the whole world to gawk at and massive fresh-air performance gains. The placement even allows for an air filter to be run on the streets.

Vehicle Fitment:
2001-2006 Mitsubishi Lancer Evolution VII-VIII-IX
• The matching STM FF 6870 Titanium V-Band Exhaust fits JDM IX rear bumpers ONLY
• Please review everything very carefully and feel free to give us a call if you need any help!

This kit is offered with a few different options:
• You can purchase the kit with just the downpipe and fabricate your own exhaust solution - this downpipe does not go to a standard location and will not work with any other exhaust systems.

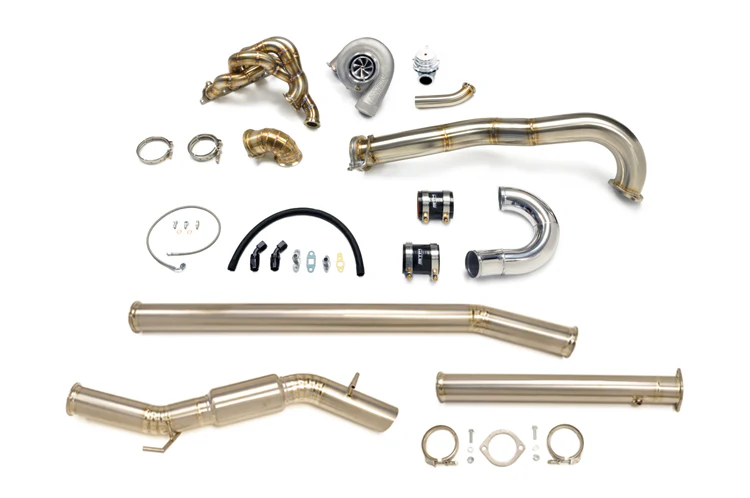

• You can purchase the entire kit WITH the matching STM FF 6870 Titanium V-Band Exhaust. It is designed for a JDM Evo IX rear bumper - it will not fit properly with a UDSM bumper. • Please do not try to install this on a USDM 8/9 or JDM 7 bumper.
• You will need a half-sized radiator, we offer the STM Small Radiator Kit in the purchase menu above if you don't already have one.

Features:
• Hand Fabricated
• Tig-Welded
• Back-Purged
• Flanged for TiAL 44mm MVR Wastegate
• Mild Steel Head Flange to Prevent Pulling Out Studs
• Schedule 10 1.5" Stainless Steel Manifold Runners

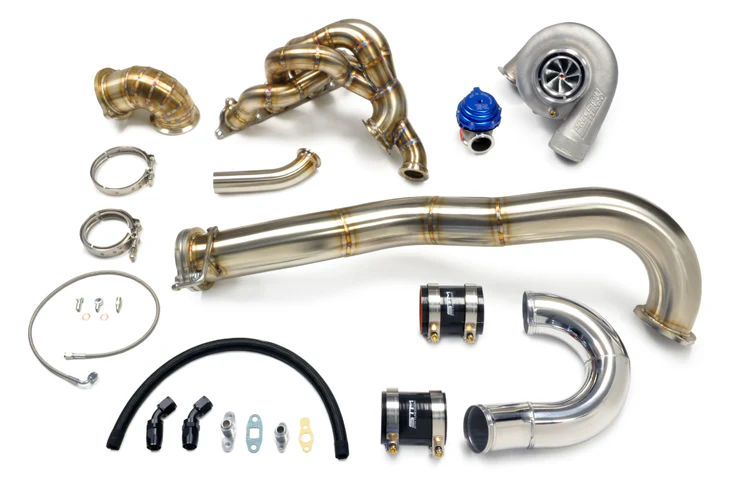

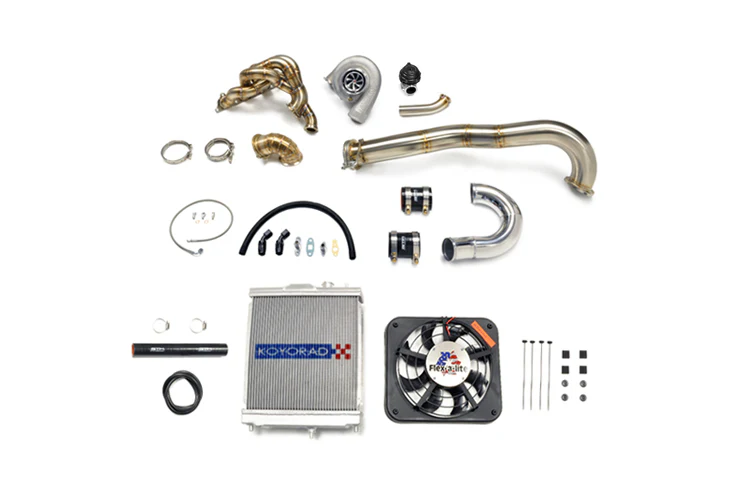

Includes:

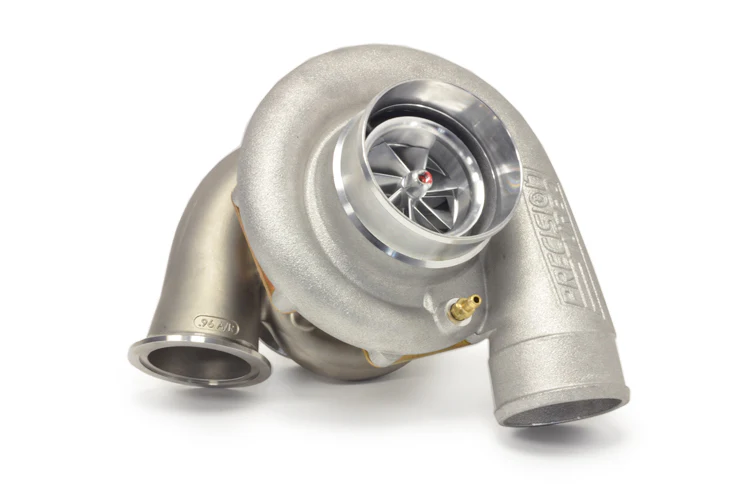

(1) PTE 6870 V-Band Turbo with Stainless Hot Side and H-Cover (3" Outlet / 4" Inlet)

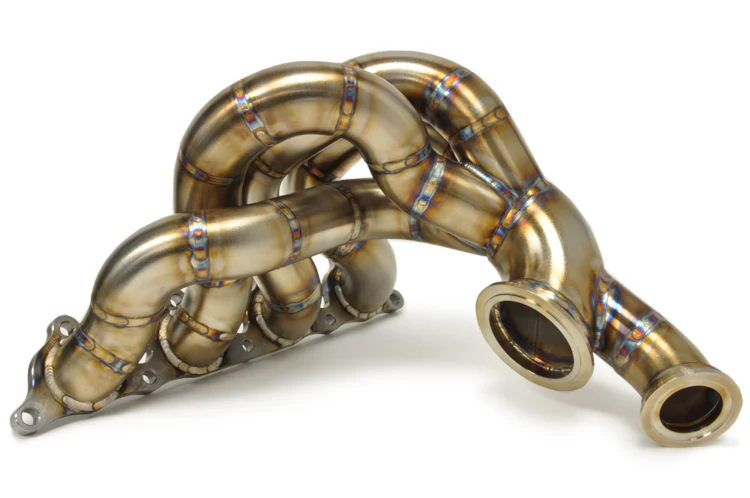

(1) STM V-Band Manifold
(1) STM O2 Housing

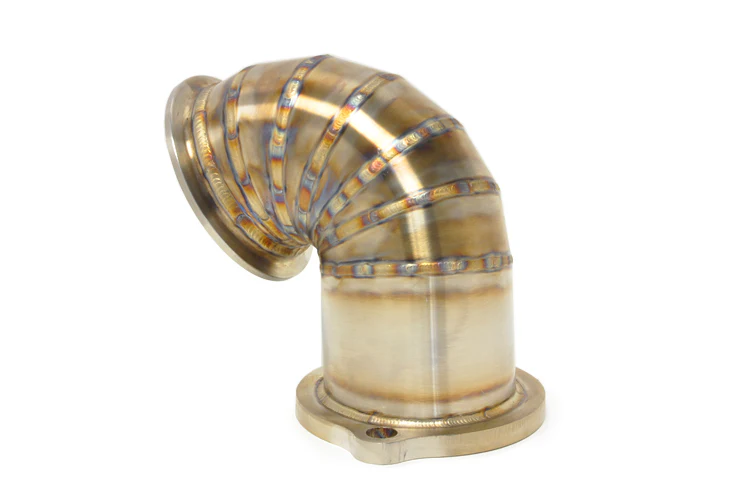

(1) STM Dump Tube
(1) STM Downpipe
(1) V-Band Clamp for Turbo to Manifold
(1) V-Band Clamp for Turbo to Downpipe
(1) TiAL MV-R 44mm Wastegate (Choice of Color)
(1) STM Oil Feed Line
(1) STM Oil Return Line
(1) STM Aluminum Lower 3" Intercooler Pipe
(2) STM 3" Couplers & Clamps
(2) Remflex Gaskets for Downpipe
(1) Extra 3.5" 2-Bolt Flange (to weld to your current exhaust)
(4) Mounting Hardware - Bolts, Nuts Washers

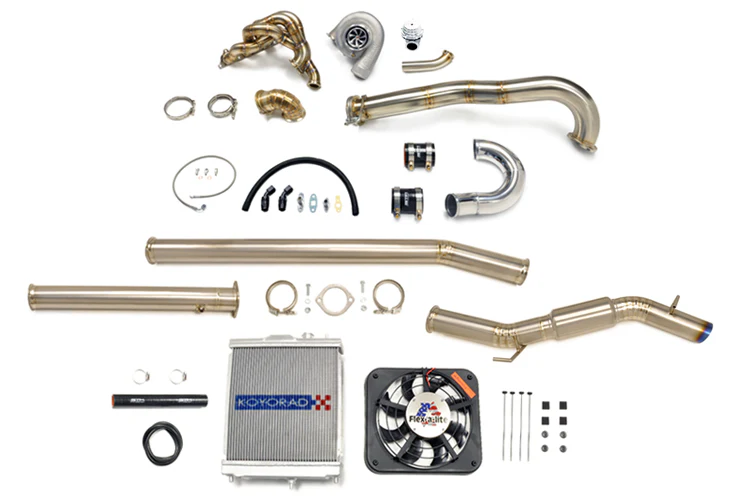

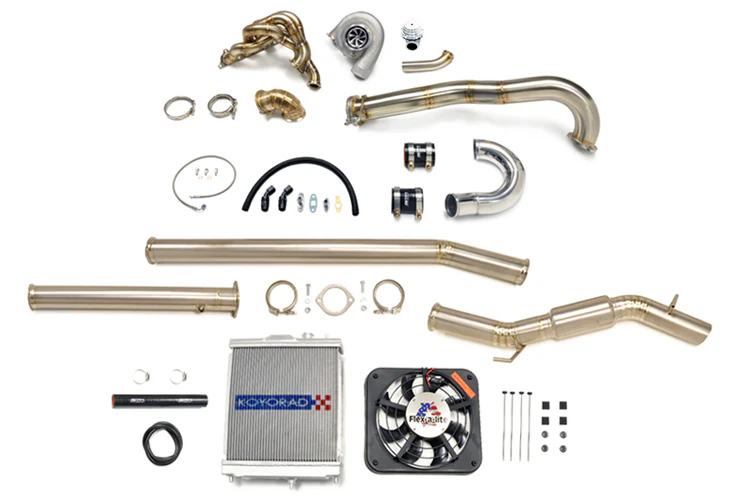

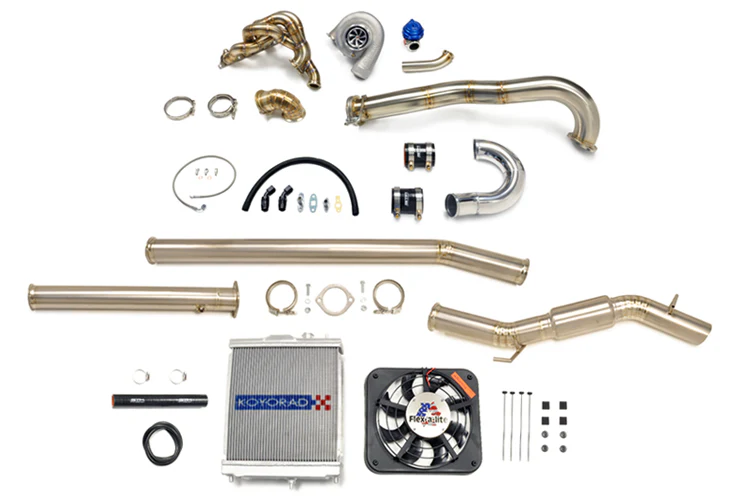

Optional:
(1) STM Small Radiator Kit

Optional:

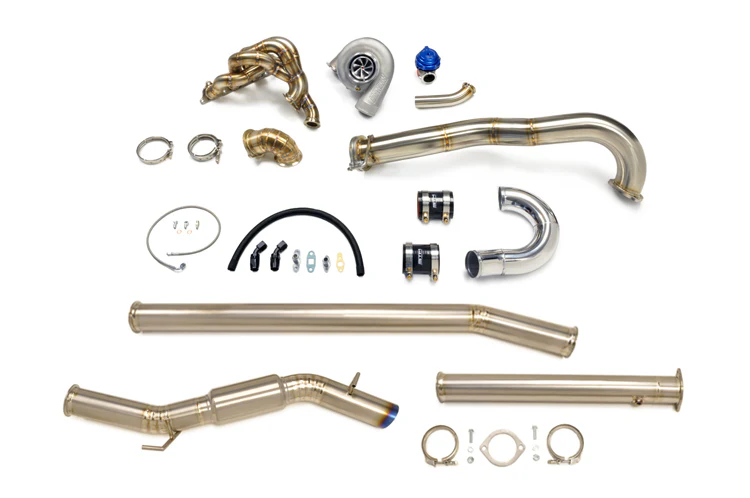

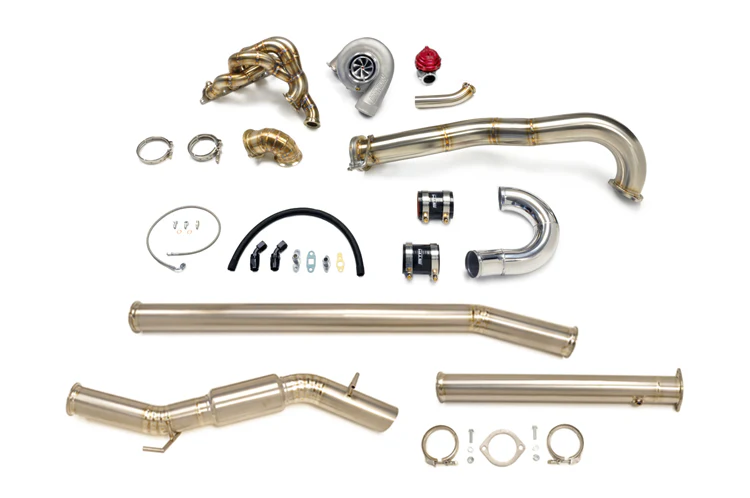

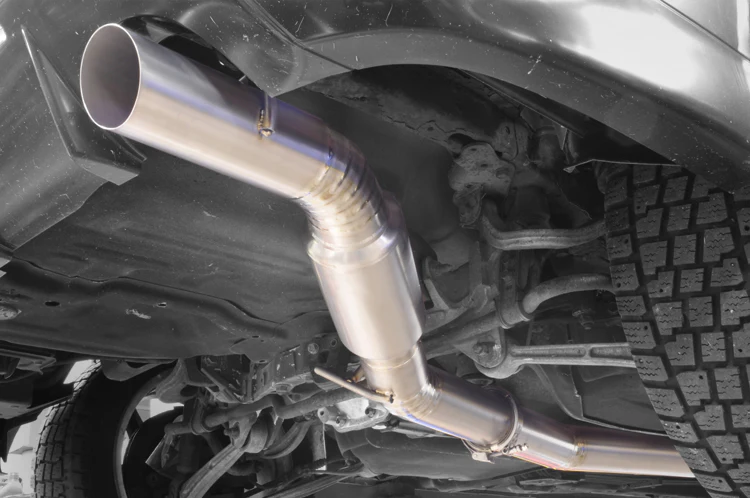

(1) STM FF 6870 Titanium V-Band Exhaust

Install Notes:
• This turbo kit will allow for an air filter, so if your racing class requires a filter, you can run one. RU-2510 is pictured installed.
• You must remove your air conditioning system.
• This kit will clear the power steering pump.
• This kit will clear the stock A/C compressor, and can work with with a different condenser and custom lines.

• You will need a half-sized radiator. The STM Small Radiator Kit is available in the purchase menu if you don't already have one.

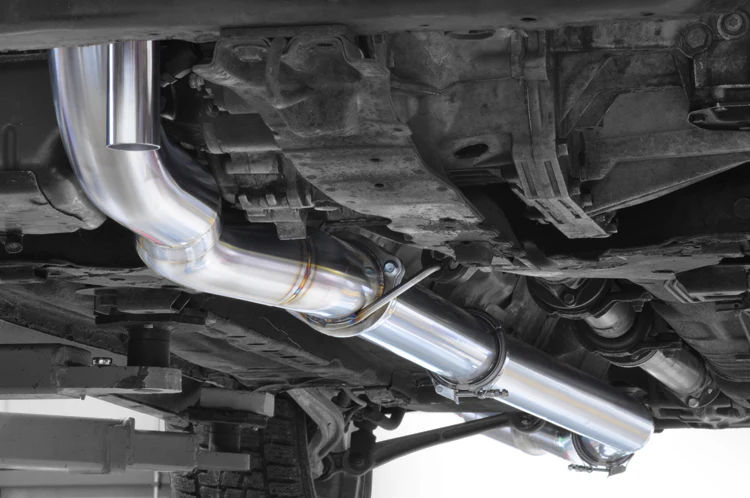

• You will need a custom exhaust or purchase the matching STM FF 6870 Titanium V-Band Exhaust available in the purchase menu!

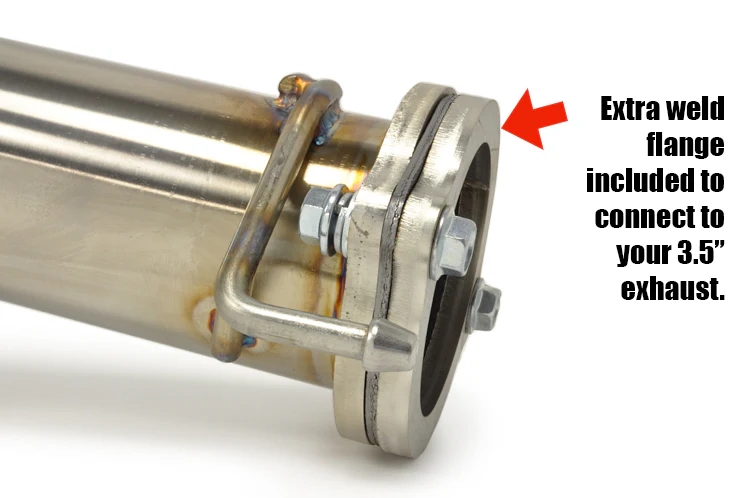

• We include an extra 3.5" weld flange to match our downpipe. We would suggest having the back half of your exhaust custom built with 3.5" tube, but the option to weld this flange to your existing 3" is always there, however it is obviously recommended to buy the 3.5" STM Ti exhaust that is designed for the kit.

• If you have already purchased the 6870 kit and want to upgrade to the STM FF 6870 Titanium V-Band Exhaust - it is also available separately.

• Don't forget your nuts! Evo 7/8/9 OEM Stud and Nut Kit

STM Products are made in the USA!
Lifetime Warranty on STM Parts to the original purchaser against manufacturing defects.

Discounts:
We are sorry, but discount codes are not available with this product.

Shipping Times: 4-6 Weeks
Hand crafted and welded in New York, please give our fabricators time to create your turbo kit!
