Garrett GT2871R (280-475 HP)
HomeStore

Garrett GT2871R (280-475 HP)

Garrett GT2871R (280-475 HP)

Horsepower:Ā
280 - 475
Displacement:Ā
1.8L - 3.0L
Turbo Reference Data Compressor Turbine
Turbo PN CHRA PN Inducer Exducer Trim A/R Inducer Exducer Trim A/R
836026-5020S 835998-0010 53mm 71mm 56 0.60 54mm 47mm 76 0.86
836026-5021S 835998-0010 53mm 71mm 56 0.60 54mm 47mm 76 0.64
Features:
  • Original GT series aerodynamics.
  • Internally wastegated turbine housing options.
  • Non wastegated turbine housings available.
  • Sold as a complete turbo (includes turbine kit & actuator).
  • Ball bearing configuration with water cooled CHRA.
  • V-band turbine housing options.
GarrettĀ® GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records. The GT Series lineup is offered in both journal and ball bearing options, and sizes ranging from GT2052 to GT3582. The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are available in all GT Series sizes. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. For any performance need, GT Series turbochargers have you covered.
Select Turbine Housing Option (A/R, Inlet, Outlet)
From $581.17

Original: $1,660.50

-65%
Garrett GT2871R (280-475 HP)ā€”

$1,660.50

$581.17

More Images

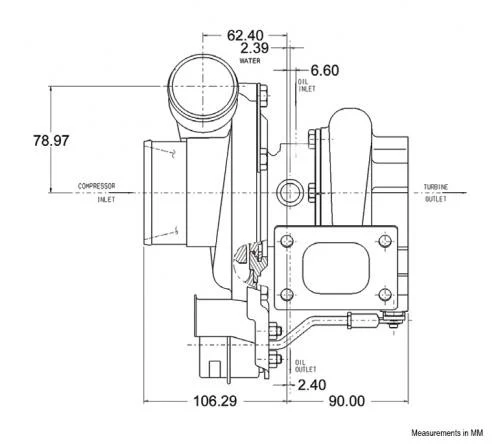

Garrett GT2871R (280-475 HP) - Image 2

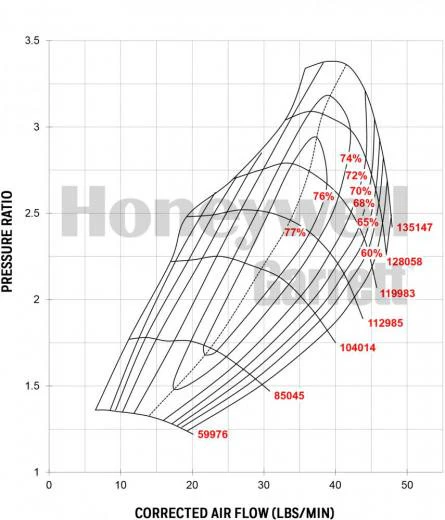

Garrett GT2871R (280-475 HP) - Image 3

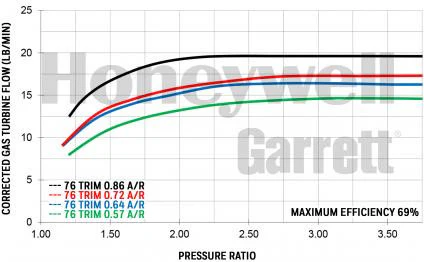

Garrett GT2871R (280-475 HP) - Image 4

Garrett GT2871R (280-475 HP)

Horsepower:Ā
280 - 475
Displacement:Ā
1.8L - 3.0L
Turbo Reference Data Compressor Turbine
Turbo PN CHRA PN Inducer Exducer Trim A/R Inducer Exducer Trim A/R
836026-5020S 835998-0010 53mm 71mm 56 0.60 54mm 47mm 76 0.86
836026-5021S 835998-0010 53mm 71mm 56 0.60 54mm 47mm 76 0.64
Features:
  • Original GT series aerodynamics.
  • Internally wastegated turbine housing options.
  • Non wastegated turbine housings available.
  • Sold as a complete turbo (includes turbine kit & actuator).
  • Ball bearing configuration with water cooled CHRA.
  • V-band turbine housing options.
GarrettĀ® GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records. The GT Series lineup is offered in both journal and ball bearing options, and sizes ranging from GT2052 to GT3582. The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are available in all GT Series sizes. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. For any performance need, GT Series turbochargers have you covered.
