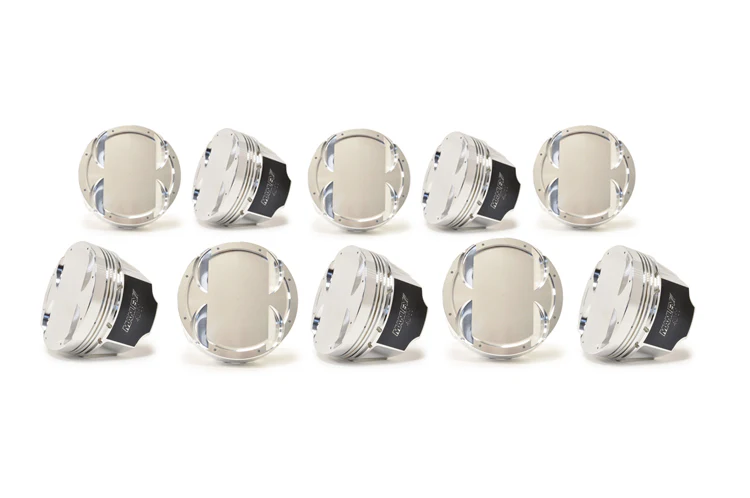

Manley Pistons for Gallardo 5.0L FSI V10 (639000CE-10) *Discontinued*
Manley Pistons are sold as a set of 10 with wrist pins, rings and round wire locks. Fits the 2003-2008 Lamborghini Gallardo 5.0L FSI V10. These pistons are designed for use in sleeved blocks with iron cylinder walls.
Discontinued:
This product was discontinued by Manley in May 2024 and is no longer available to purchase new. We have none remaining in stock.
Vehicle Fitment:
5.0L FSI V10
2003-2008 Lamborghini Gallardo
Important Notes:
Designed for use in sleeved blocks with iron cylinder walls.
Piston Specs:
| Part Number: | 639000CE‑10 |
| Pin: | .787"/20mm x 2.250" |
| Bore Size: | 82.5mm (Standard Bore) |
| Rod Length: | 6.063" |
| Stroke: | 92.8 |
| Comp Distance: | 1.087" |
| Dome Volume: | -3.5 cc |
| Compression Ratio: | 10.0:1 |
| Piston Type: | Dish |
| Weight: | TBA |
| Ring Set: | 46826‑4 |
Manley Platinum Series Pistons:
• Moly Coated Skirts
• 2618 high strength material
• Offset wrist pin for quiet start-ups
• Pressure balance groove
• Premium Steel top rings
• Round wire locks included
• Recommended piston clearance .0035" measured .850" from the bottom of the oil ring

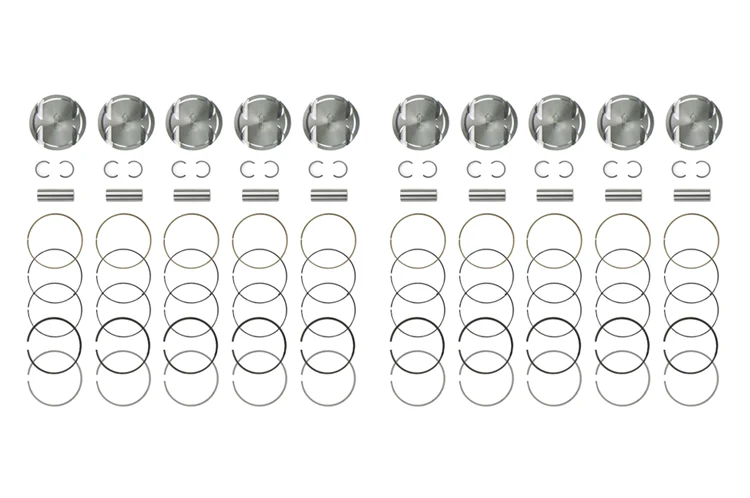

Includes:
(10) Pistons
(10) Piston Ring Sets
(10) Wrist Pins
(10) Spiral Locks
Images:
Pistons will vary by application. Images are for reference.
