620000C-4 Manley Pistons EJ205 for 02-05 WRX

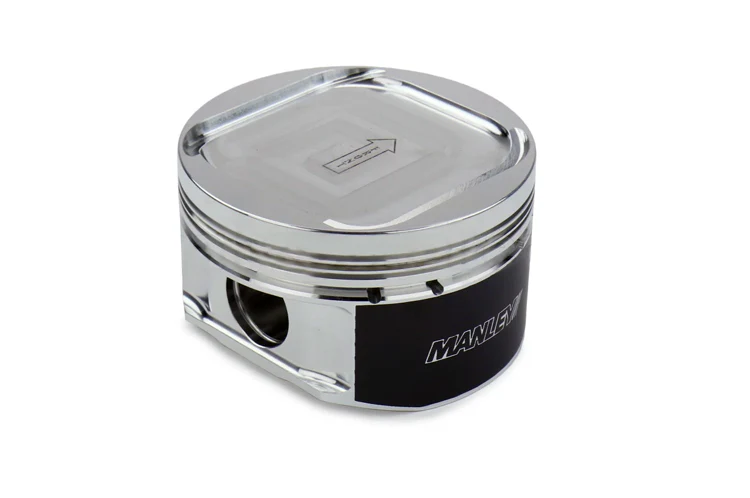

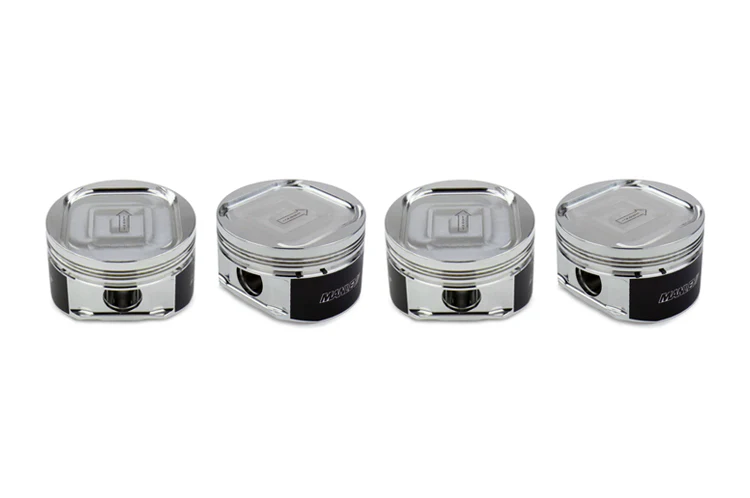

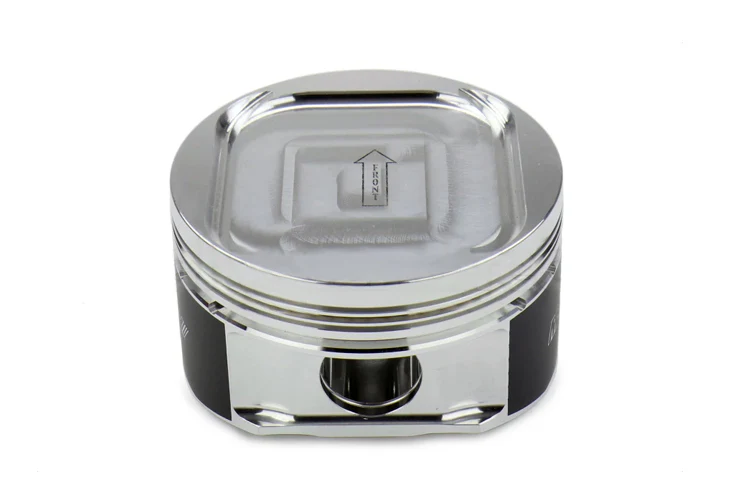

Manley Pistons for the 2002-2005 EJ205 Subaru WRX includes a full set of 4 pistons, wrist pins, ring sets and round wire locks.
See more Manley Pistons for the EJ205 WRX
Vehicle Fitment:
Subaru EJ205
2002-2005 WRX
Piston Spec:
Manley Platinum Series Pistons:
• Moly Coated Skirts
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier second ring
• Round wire locks included
• Recommended piston clearance: .003" for mildly boosted and .0035" for highly boosted
measured .850" (79mm stroke) and 1.100" (75mm stroke) from the bottom of the oil ring

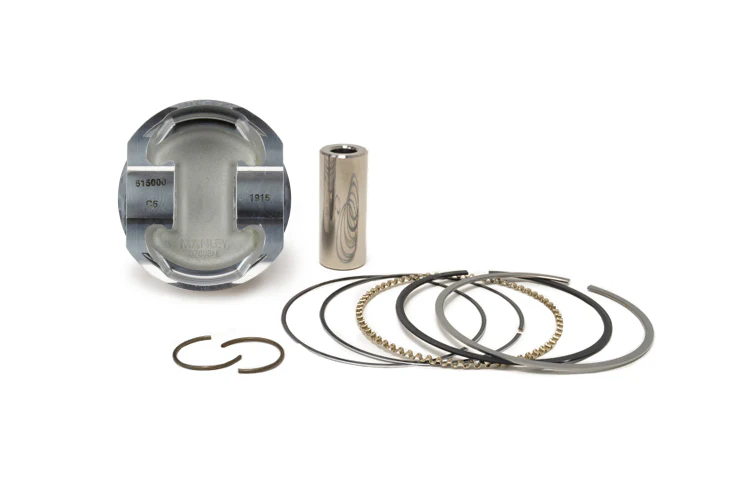

Includes:
(4) Pistons
(4) Piston Ring Sets
(4) Wrist Pins
(4) Wire Locks
Images:
Pistons will vary by application. Images are for reference.
See more Manley Pistons for the EJ205 WRX
Vehicle Fitment:
Subaru EJ205
2002-2005 WRX
Piston Spec:
| Part Number: | 620000C‑4 |
| Pin: | Standard .180" Wall |
| Bore Size: | 92mm (Standard Bore) |
| Rod Length: | 5.137" |
| Stroke: | 79mm Stroker (2.3L) |
| Comp Distance: | 1.209" |
| Dome Volume: | -16 cc |
| Cylinder Head cc: | 48 |
| Compression Ratio: | 8.5:1 |
| Piston Type: | Dish |
| Weight: | 355 Grams |
| Ring Set: | 46920DT‑4 |
• Moly Coated Skirts
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier second ring
• Round wire locks included
• Recommended piston clearance: .003" for mildly boosted and .0035" for highly boosted
measured .850" (79mm stroke) and 1.100" (75mm stroke) from the bottom of the oil ring
Includes:
(4) Pistons
(4) Piston Ring Sets
(4) Wrist Pins
(4) Wire Locks
Images:
Pistons will vary by application. Images are for reference.
