605010C-4 Manley Pistons 4G63 6-Bolt
Manley Pistons are sold as a set of 4 with wrist pins, rings and spiral locks.
See more Manley Pistons for the 6-Bolt DSM
Vehicle Fitment:
6-Bolt 4G63 1G DSM
1990-1992.5 Eclipse GST/GSX
1990-1992.5 Talon TSi
1990-1992.5 Laser RS
1991-1992.5 Galant VR4
Piston Specs:
Manley Platinum Series Pistons:
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier seconds and round wire locks included
• Recommended piston clearance .0035" measured 1.100" from the bottom of the oil ring

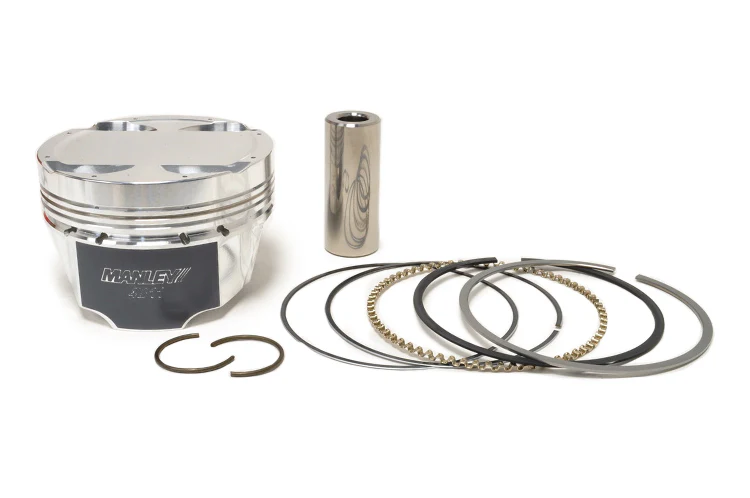

Includes:
(4) Pistons
(4) Piston Ring Sets
(4) Wrist Pins
(4) Spiral Locks

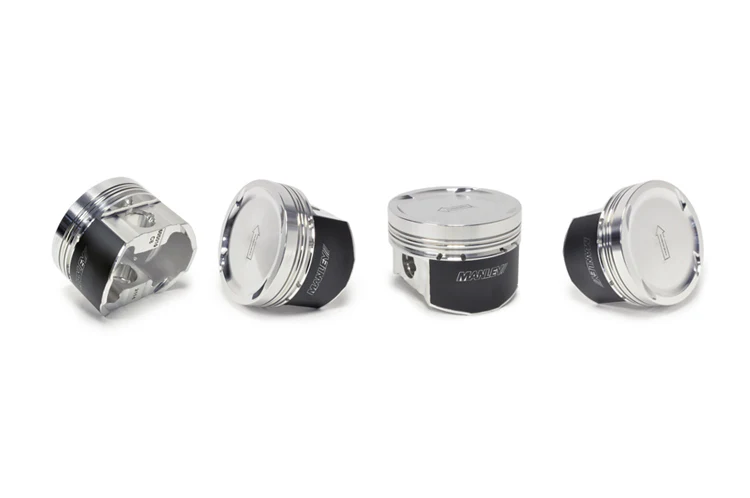

Images:
Pistons will vary by application. Images are for reference.
See more Manley Pistons for the 6-Bolt DSM
Vehicle Fitment:
6-Bolt 4G63 1G DSM
1990-1992.5 Eclipse GST/GSX
1990-1992.5 Talon TSi
1990-1992.5 Laser RS
1991-1992.5 Galant VR4
Piston Specs:
| Part Number: | 605010C‑4 |
| Pin: |
Standard Pin .150" Wall x 2.250" (Premium Chrome Moly) .827" / 21mm |
| Bore Size: | 86 mm (+1.0mm) |
| Rod Length: | 150 mm |
| Stroke: | 88mm Standard Stroke (2.0L) |
| Comp Distance: | 1.375" |
| Dome Volume: | -12 cc |
| DSM Head: | 47 cc |
| Compression Ratio: | 8.5:1 CR |
| Piston Type: | Dish |
| Weight: | 348 Grams |
| Ring Set: | 46860‑4 |
Manley Platinum Series Pistons:
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier seconds and round wire locks included
• Recommended piston clearance .0035" measured 1.100" from the bottom of the oil ring
Includes:
(4) Pistons
(4) Piston Ring Sets
(4) Wrist Pins
(4) Spiral Locks
Images:
Pistons will vary by application. Images are for reference.
See more Manley Parts
$699.23
605010C-4 Manley Pistons 4G63 6-Bolt—
$699.23
More Images
605010C-4 Manley Pistons 4G63 6-Bolt
Manley Pistons are sold as a set of 4 with wrist pins, rings and spiral locks.
See more Manley Pistons for the 6-Bolt DSM
Vehicle Fitment:
6-Bolt 4G63 1G DSM
1990-1992.5 Eclipse GST/GSX
1990-1992.5 Talon TSi
1990-1992.5 Laser RS
1991-1992.5 Galant VR4
Piston Specs:
Manley Platinum Series Pistons:
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier seconds and round wire locks included
• Recommended piston clearance .0035" measured 1.100" from the bottom of the oil ring
Includes:
(4) Pistons
(4) Piston Ring Sets
(4) Wrist Pins
(4) Spiral Locks
Images:
Pistons will vary by application. Images are for reference.
See more Manley Pistons for the 6-Bolt DSM
Vehicle Fitment:
6-Bolt 4G63 1G DSM
1990-1992.5 Eclipse GST/GSX
1990-1992.5 Talon TSi
1990-1992.5 Laser RS
1991-1992.5 Galant VR4
Piston Specs:
| Part Number: | 605010C‑4 |
| Pin: |
Standard Pin .150" Wall x 2.250" (Premium Chrome Moly) .827" / 21mm |
| Bore Size: | 86 mm (+1.0mm) |
| Rod Length: | 150 mm |
| Stroke: | 88mm Standard Stroke (2.0L) |
| Comp Distance: | 1.375" |
| Dome Volume: | -12 cc |
| DSM Head: | 47 cc |
| Compression Ratio: | 8.5:1 CR |
| Piston Type: | Dish |
| Weight: | 348 Grams |
| Ring Set: | 46860‑4 |
Manley Platinum Series Pistons:
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier seconds and round wire locks included
• Recommended piston clearance .0035" measured 1.100" from the bottom of the oil ring
Includes:
(4) Pistons
(4) Piston Ring Sets
(4) Wrist Pins
(4) Spiral Locks
Images:
Pistons will vary by application. Images are for reference.
See more Manley Parts
