581200 Manley Turbo Tuff Pistons for 2JZ-GTE

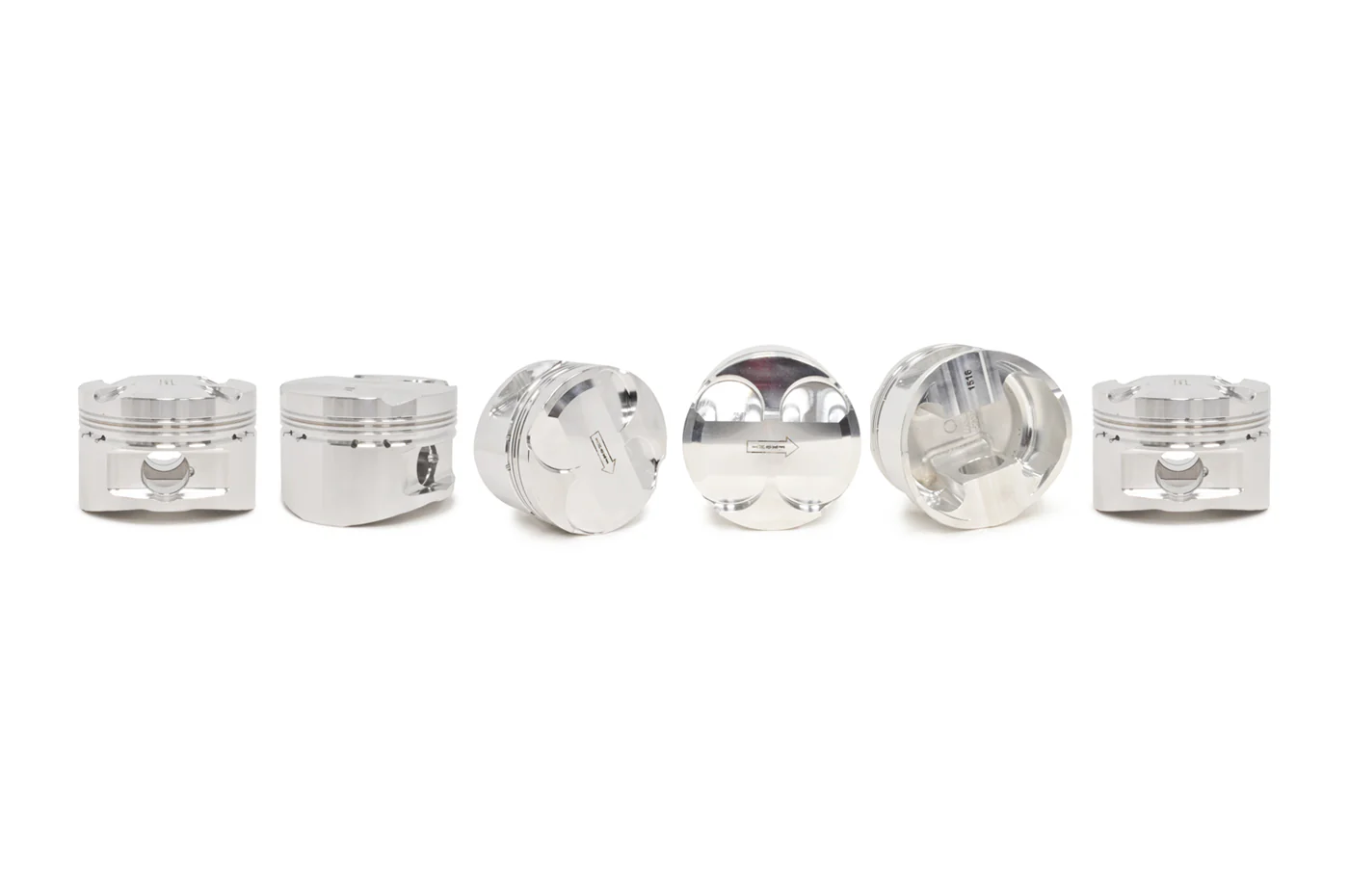

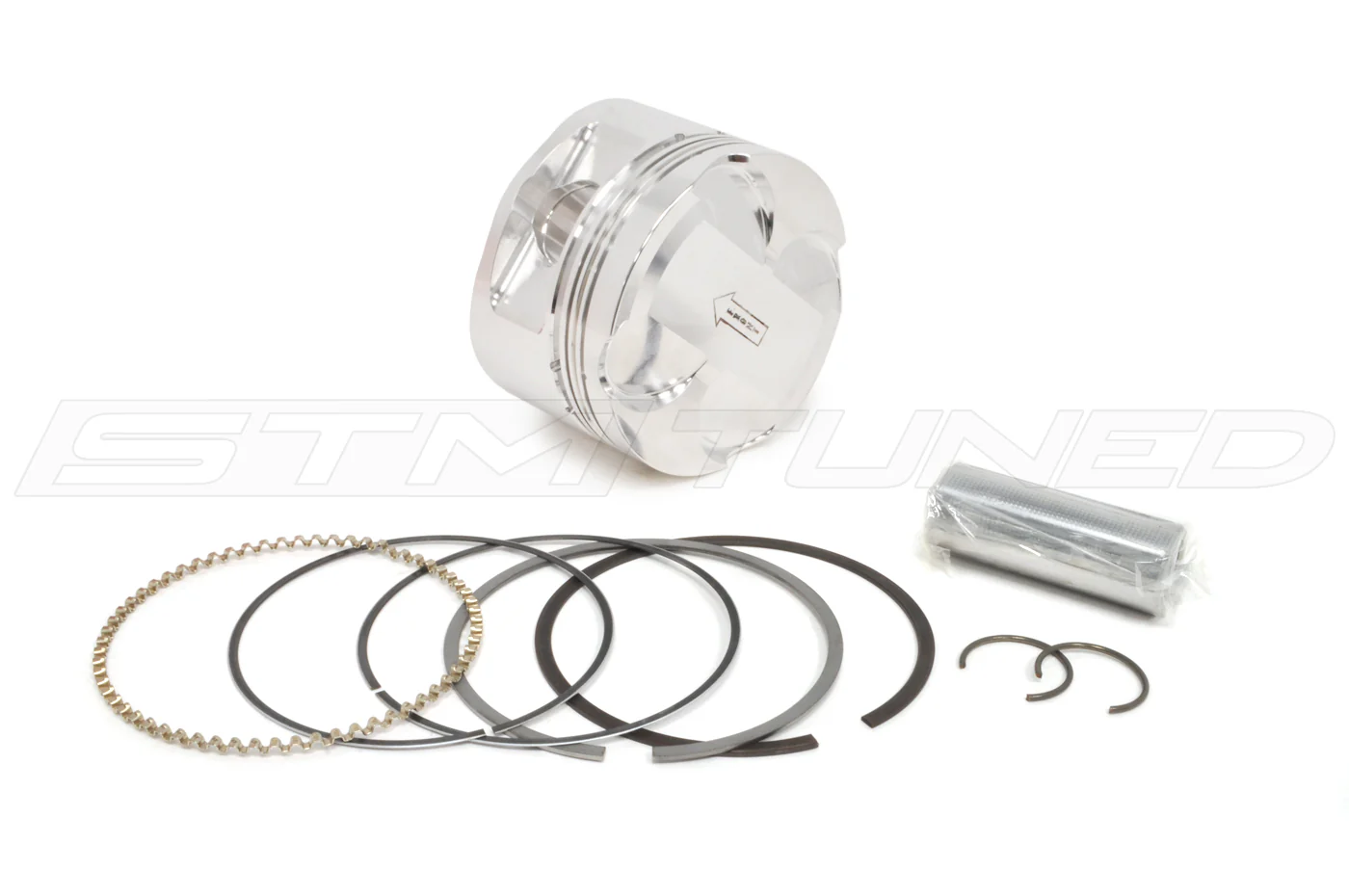

Manley Pistons are sold individually or as a set of 6 with wrist pins, rings and spiral locks. Fits 2JZ-GTE 1993-1998 Toyota Supra. 86.75mm +0.75mm Bore, 9.0:1 compression.
Vehicle Fitment:
1993-1998 Toyota Supra MK4 2JZ-GTE
Manley Platinum Series Pistons:
• Moly Coated Skirts
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier seconds and round wire locks included
• Recommended piston clearance .0035" measured .850" from the bottom of the oil ring
• Wrist Pins are 2.250" long (23mm diameter)
Turbo Tuff Benefits:
• Vertical gas ports designed for high HP race engines
• Turbo Tuff Wrist Pin
Vehicle Fitment:
1993-1998 Toyota Supra MK4 2JZ-GTE
| Part Numbers: | 581200-6 (Matched Set of 6) 581200-1 (Single Piston) |
| Pin: |
Standard Pin 0.250" Wall x 2.250" (Premium Chrome Moly) .866" / 22mm Pin |
| Bore Size: | 86.75mm (.030" Oversize) |
| Stroke: | 90mm (3.2L Stroker) |
| Dome Volume: | -4 cc |
| Cylinder Head cc: | 45 cc |
| Compression Ratio: | 9.0:1 |
| Ring Set: | 46855-06 |
• Moly Coated Skirts
• 2618 high strength material
• Lightweight design with offset wrist pin for quiet start-ups
• Pressure balance groove
• Will accommodate +1mm valve sizes
• Premium Steel top rings with Napier seconds and round wire locks included
• Recommended piston clearance .0035" measured .850" from the bottom of the oil ring
• Wrist Pins are 2.250" long (23mm diameter)
Turbo Tuff Benefits:
• Vertical gas ports designed for high HP race engines
• Turbo Tuff Wrist Pin
